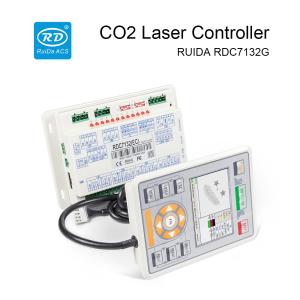

RUIDA RDC7132G CO2 Laser Controller For Cutting And Engraving With XY Axis Stepper Motor Driver
Discroption of RDC7132G:
The RDC7132G system is a drive-control laser cutting and engraving control system developed by Ruida Technology, which integrates the XY axis stepper motor drive unit. Z-axis control requires external stepping drives for expansion. Support USB2.0 and PC communication, support U disk copy files.
Function description:
1.Standalone operation.
2.Support USB and Ethernet communication and U flash disk.
3. 3.5” color screen with rich control keys.
4.Drive and control integrated, integration of XY axis stepping motor driver.
5.Support rich laser interfaces. External auxiliary accessories are optional.
6.Worked with independent application software RDWorksV8; support plug-in software and virtual printing.
Software RDworks V8(Free)
Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.
Technical Parameters:
| Parameters | RDC7132G |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 3 |
| Laser channel | 1 |
| Drive mode | XY axis integrated two-phase stepping driver |
| Double heads synchronous | Not Support |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 3.5” color character screen + keys |
| Feeding | Z axis feeding + sheet feeding |
| Encryption | Support |
| Onboard clock | Not support |
| Firmware | Support the remote upgrade of mainboard program |
| Rotary | Y axis rotation |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDImage |
| Language | Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian |
| Size | Panel: L108*W148*H26.1mm Mainboard: L180*W116.5*H33.1mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Note: Virtual printing only supports Win10.
